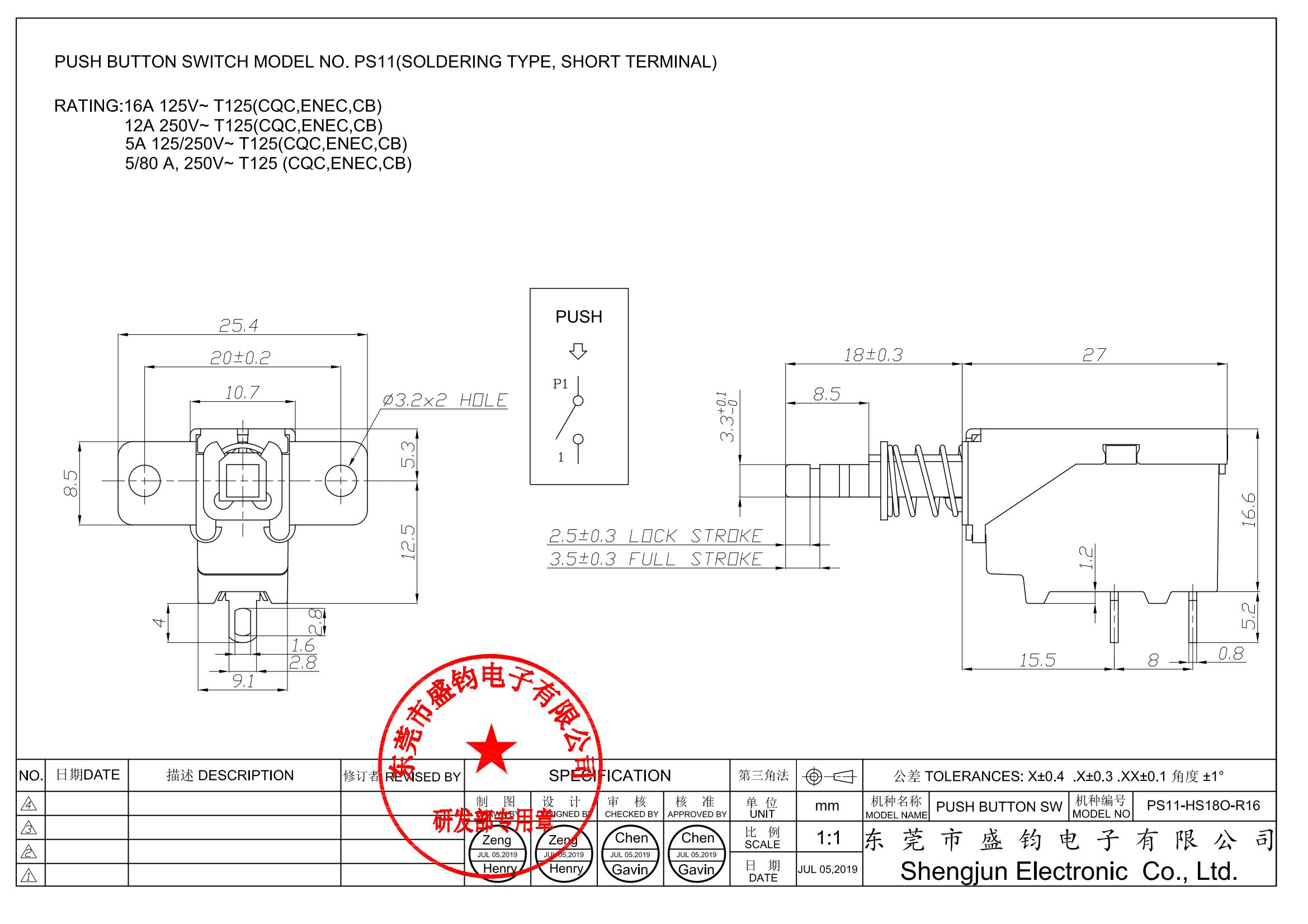

PS11-HS18O-R16
Self-locking/non-locking functions, using environmentally friendly materials, can help process welding wires, processing costs are subject to communication with customer service.
16A 125/250VAC, silver-plated terminals, plastic fire-retardant PA66
①This model is self-locking,ON-OFF
②Rating：16A 125/250VAC
Certification - ENEC、CB、CQC
③Support customization.
(Additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).
ELECTRICAL PERFORMANCE
CONTACT RESISTANCE- 50mΩ Max
*MEASURED BY FALL-OF-POTENTIAL METHOD AT DC 0.2V/1A SHOULD BE LESS THAN 50mΩINITIAL.
INSULATION RESISTANCE - 100MΩ Min 500VDC
*MEASURED WITH DC 500V APPLIED BETWEEN TERMINALS OF OPEN CONTACTS AND BETWEEN TERMINAL OF OPPOSITE POLARITY OR METAL PART. SHOULD BE MORE THAN 100MΩ.
DIELECTRIC STRENGTH -
THE SWITCH SHALL WITHSTAND WITHOUT BREAKDOWN A POTENTIAL OF AC 1500V
0.5mA FOR 1-MINUTE BETWEEN TERMINALS OF OPEN CONTACTS AND TERMINALS OF
OPPOSITE POLARITY, AC 3000V 0.5mA FOR 1 MINUTE BETWEEN TERMINALS AND METAL
COVER.
ELECTRICAL LIFE - 10,000 CYCLES+
