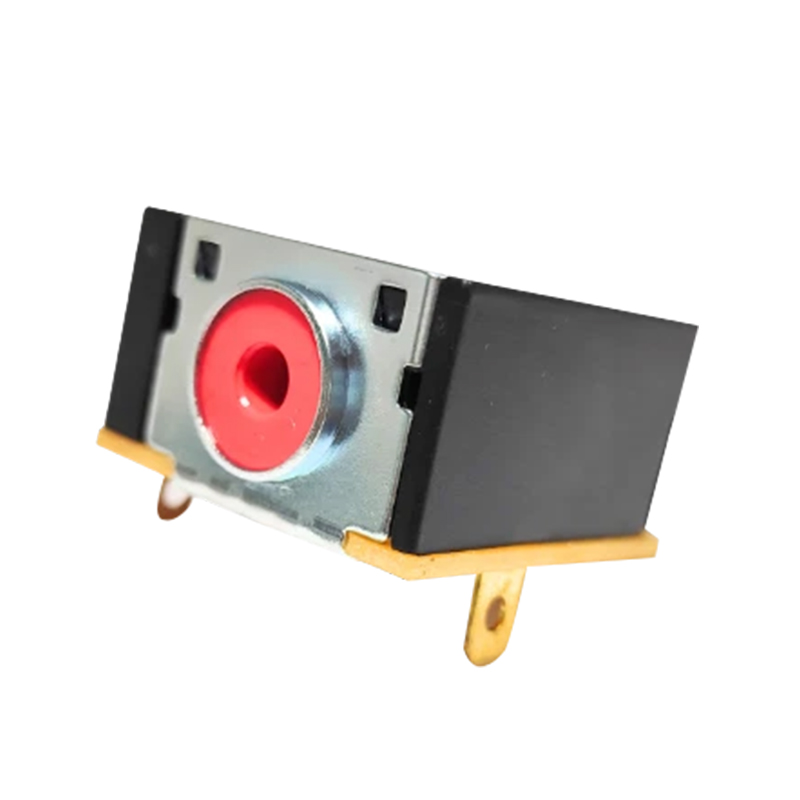

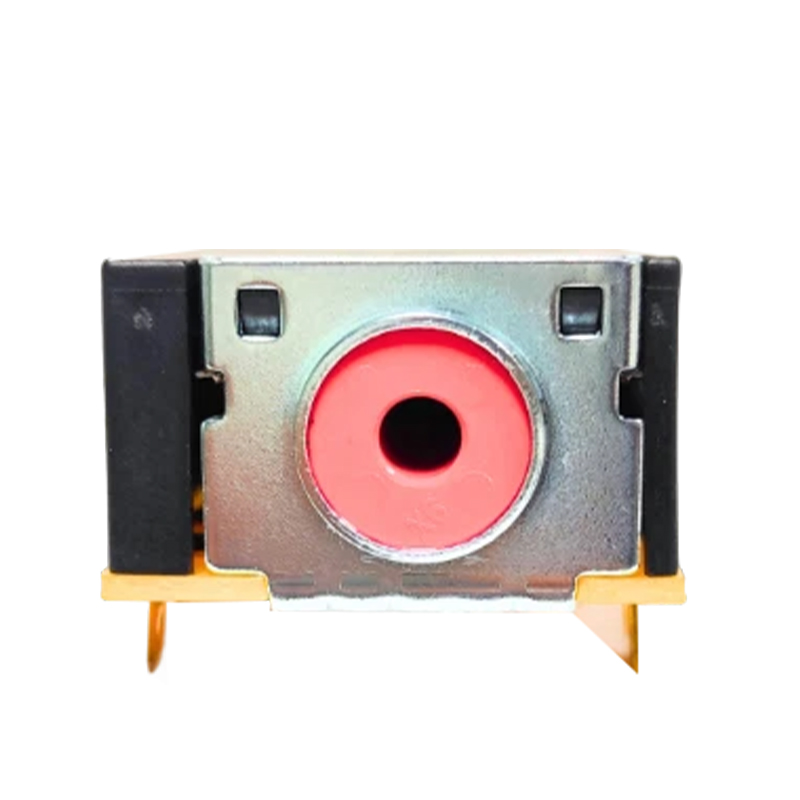

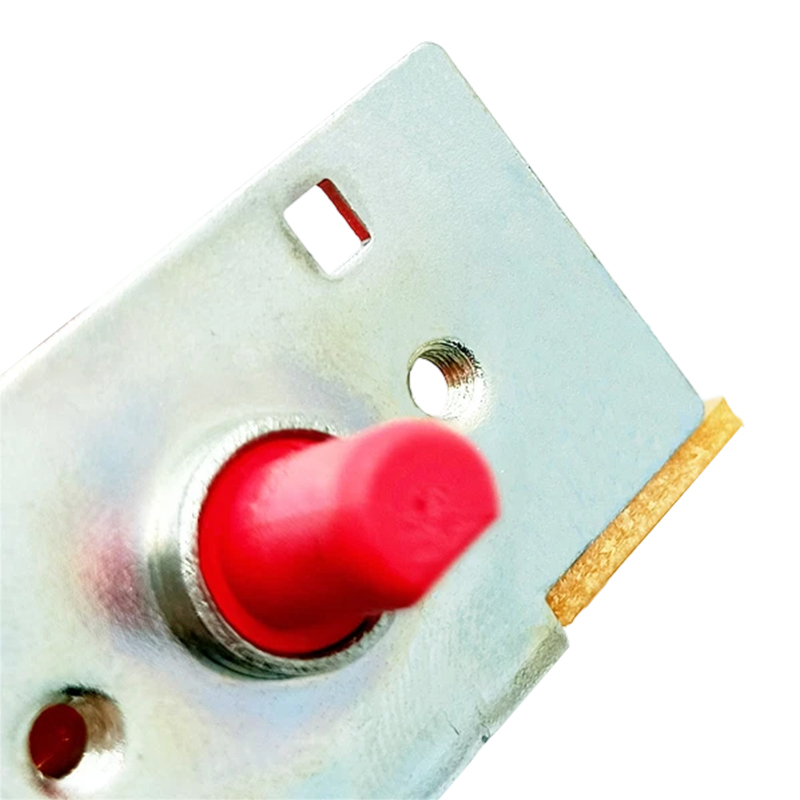

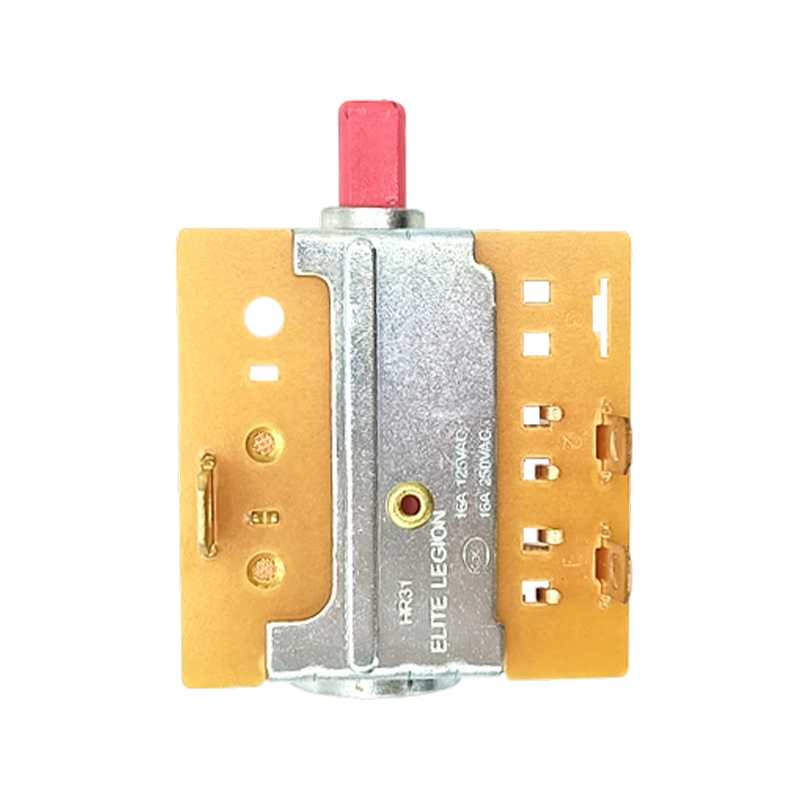

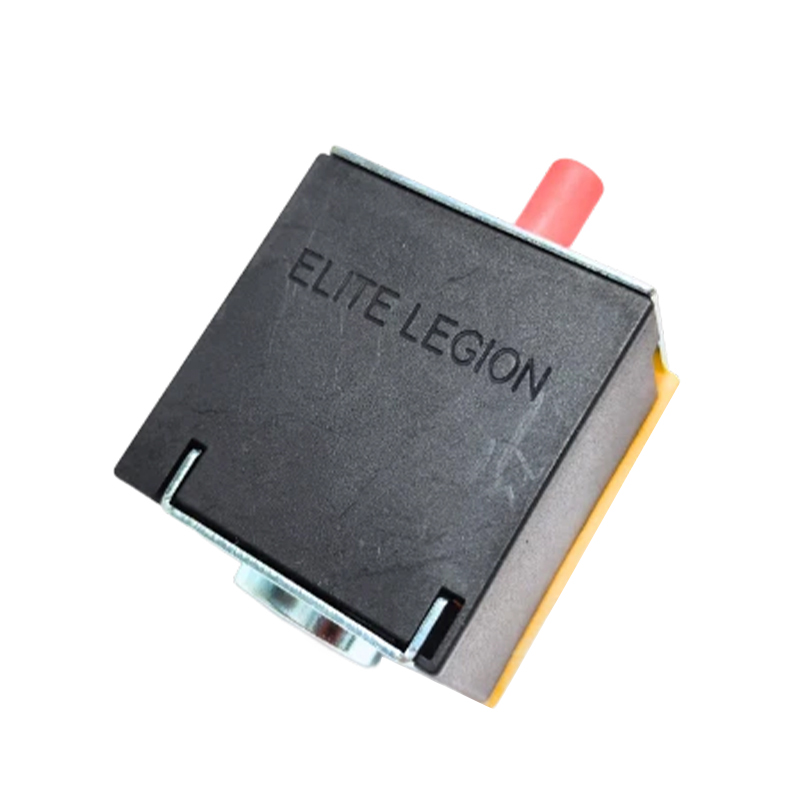

4.3 Pin 3 Speed Rotary Switch 16A High Current Selector Switch for Electric Heater

4.3 Pin 3 Speed Rotary Switch 16A High Current Selector Switch for Electric Heater

HR31-M42A-1P-F1C-R

Diverse specifications and functions, environmentally friendly materials, support customization, additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).
12A 125/250VAC, silver-plated terminals, plastic fire-retardant PA66

Consult

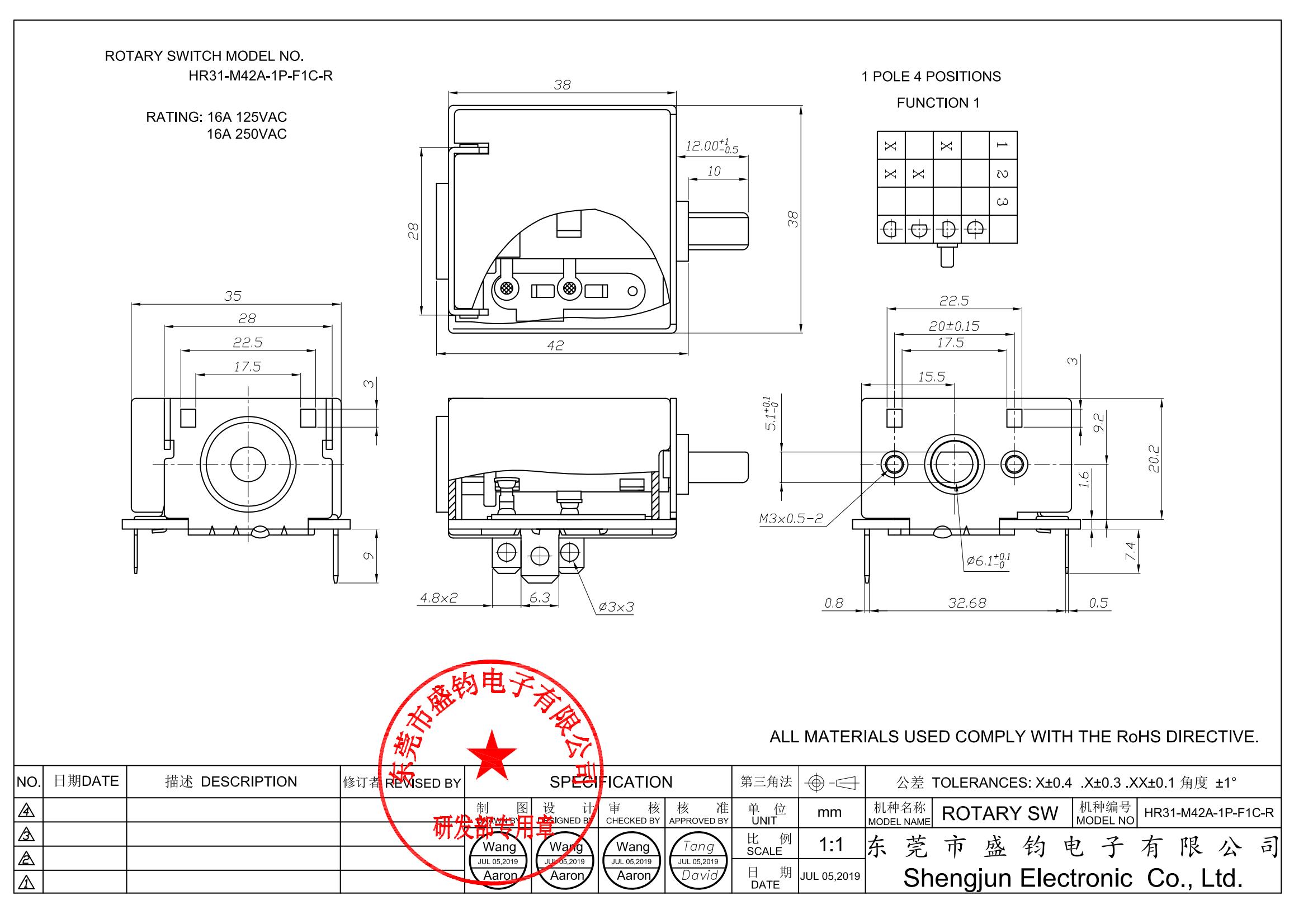

Features Technical Indicators Overall Dimension

①This model with dust cover, rotates 45° between each step. The positions are as follows:

Position 1: OFF

Position 2: 1 connection

Position 3: 2 connection

Position 4: 1+2 connection

②Rating：16A 125/250VAC

Certification - CQC

③Support customization.

(Additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).

ELECTRICAL PERFORMANCE

CONTACT RESISTANCE - 50mΩ Max

*MEASURED BY FALL-OF-POTENTIAL METHOD AT DC 0.2V/1A SHOULD BE LESS THAN 50mΩINITIAL.

INSULATION RESISTANCE- 100MΩ Min 500VDC

*MEASURED WITH DC 500V APPLIED BETWEEN TERMINALS OF OPEN CONTACTS AND BETWEEN TERMINAL OF OPPOSITE POLARITY OR METAL PART. SHOULD BE MORE THAN 100MΩ.

DIELECTRIC STRENGTH - 1500VAC/Min

*THE SWITCH SHALL WITHSTAND WITHOUT BREAKDOWN A POTENTIAL OF AC 1500V 0.5mA FOR MINUTE BETWEEN TERMINALS OF OPEN CONTACTS AND TERMINALS OF OPPOSITE POLARITY OR METAL PART.

ELECTRICAL LIFE - 10,000 CYCLES+
