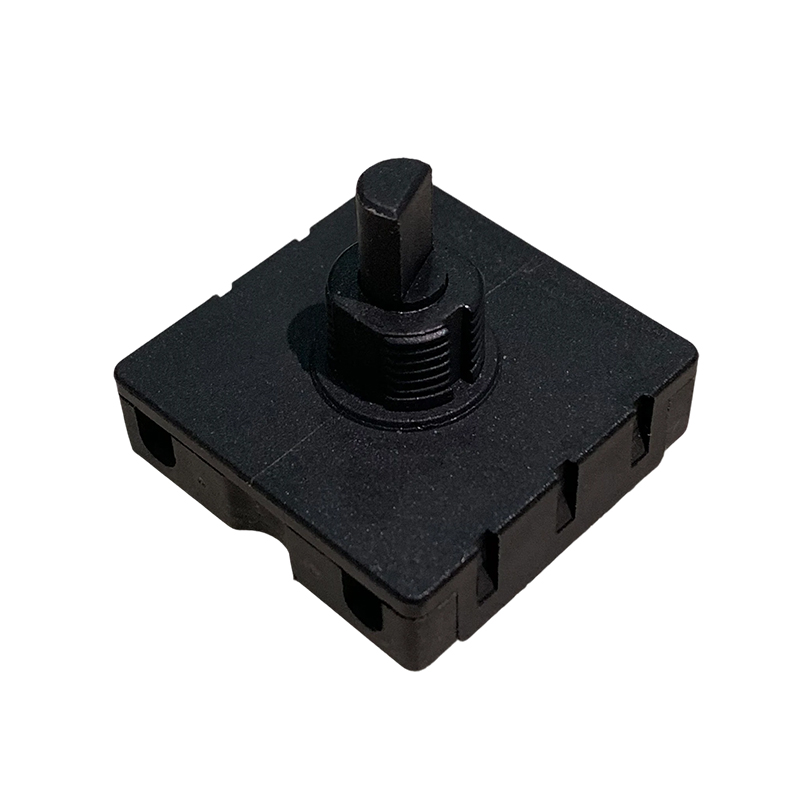

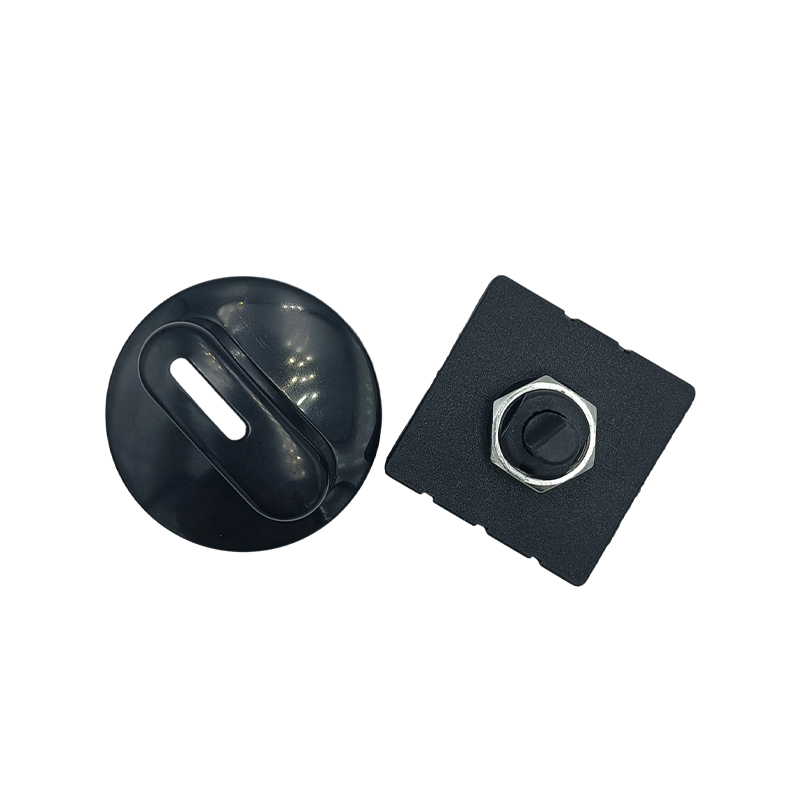

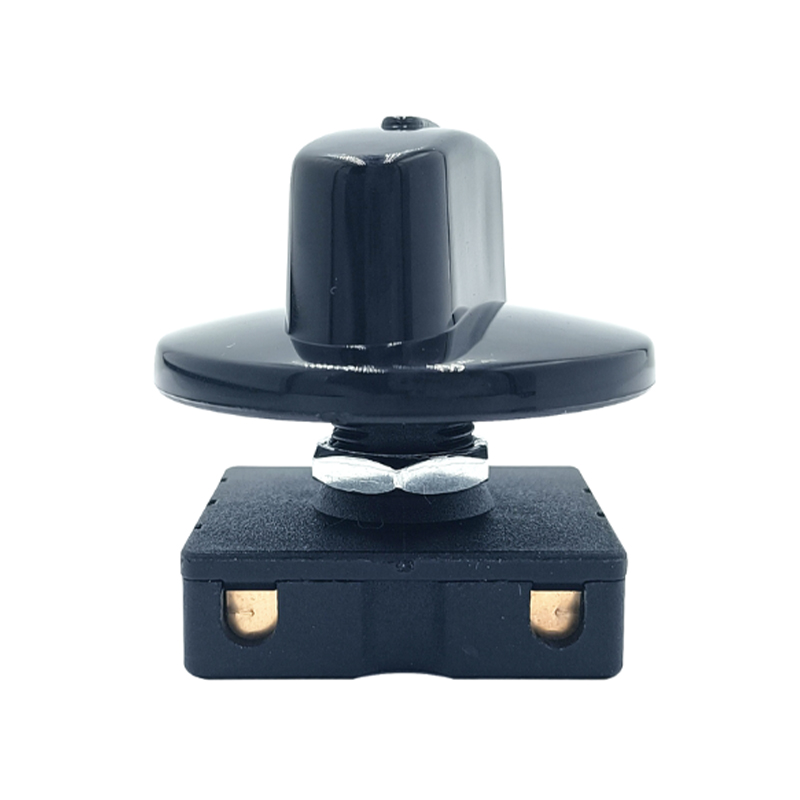

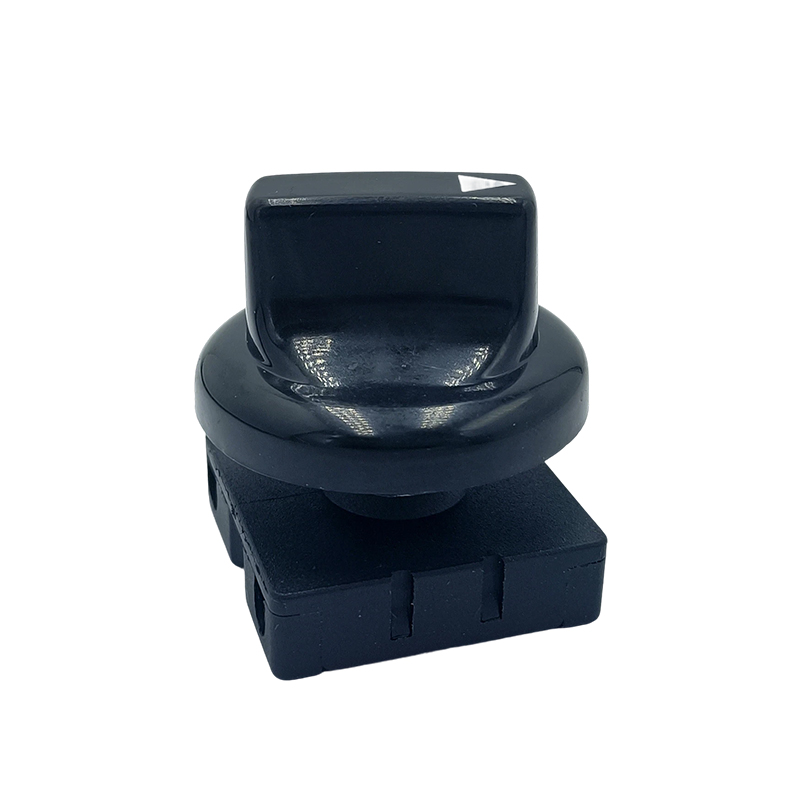

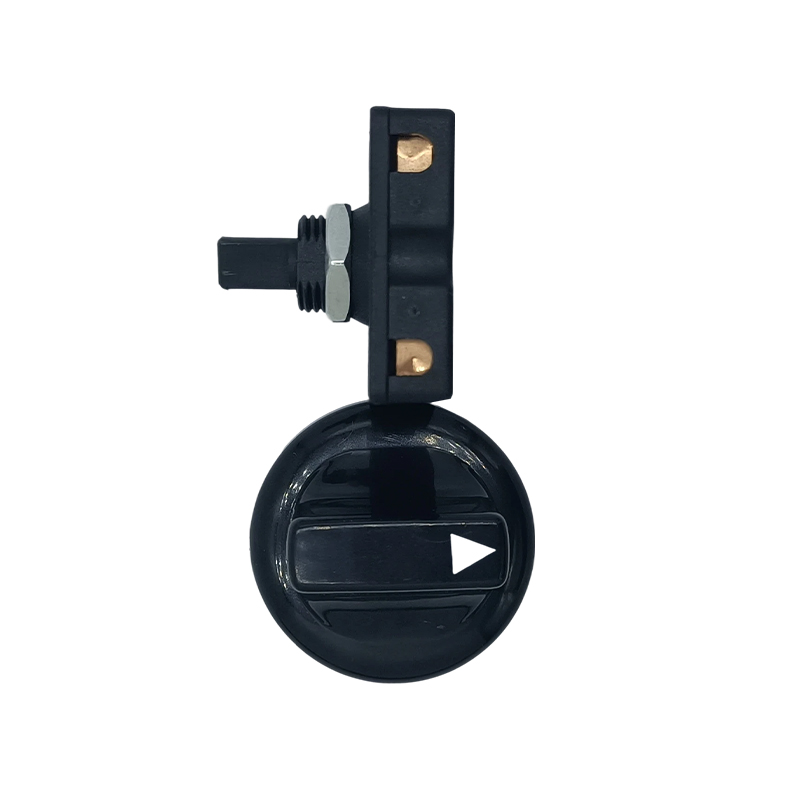

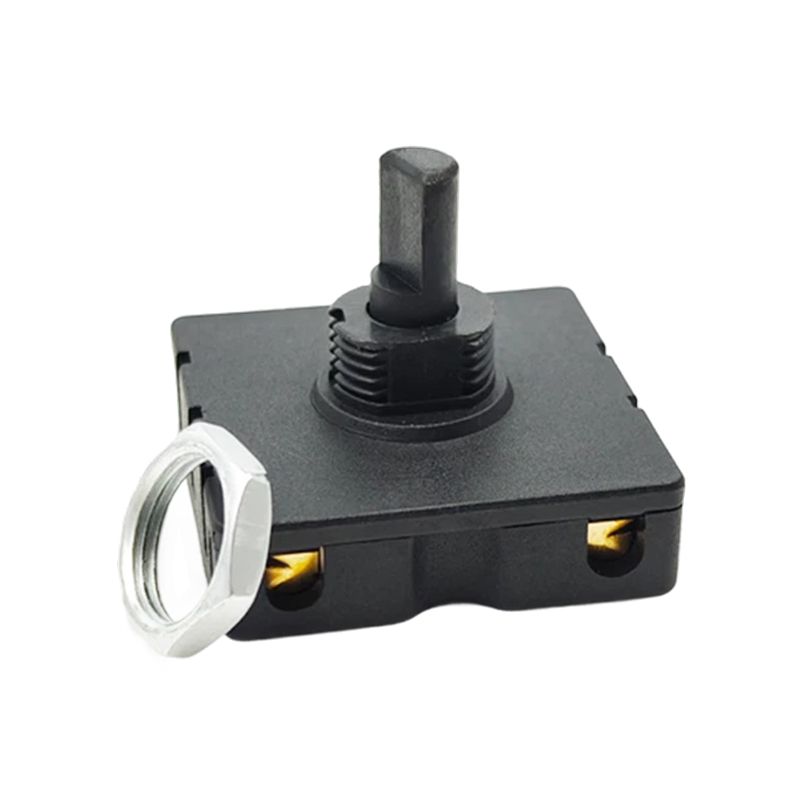

Fan 4 Position 3 Speed Rotary Switch with Control Knob

Fan 4 Position 3 Speed Rotary Switch with Control Knob

FR01-A4F1L1-AN+7# cap

The specifications and functions are diverse, environmentally friendly materials are used, and customization is supported. If additional molds are required, the initial mold costs shall be borne by the customer. The two parties can agree to deduct the payment or return the mold costs after a certain number of units are reached. Since electronic parts are relatively special, the specific mold costs shall be confirmed by communication with customer service).
6-10A 125/250VAC

Consult

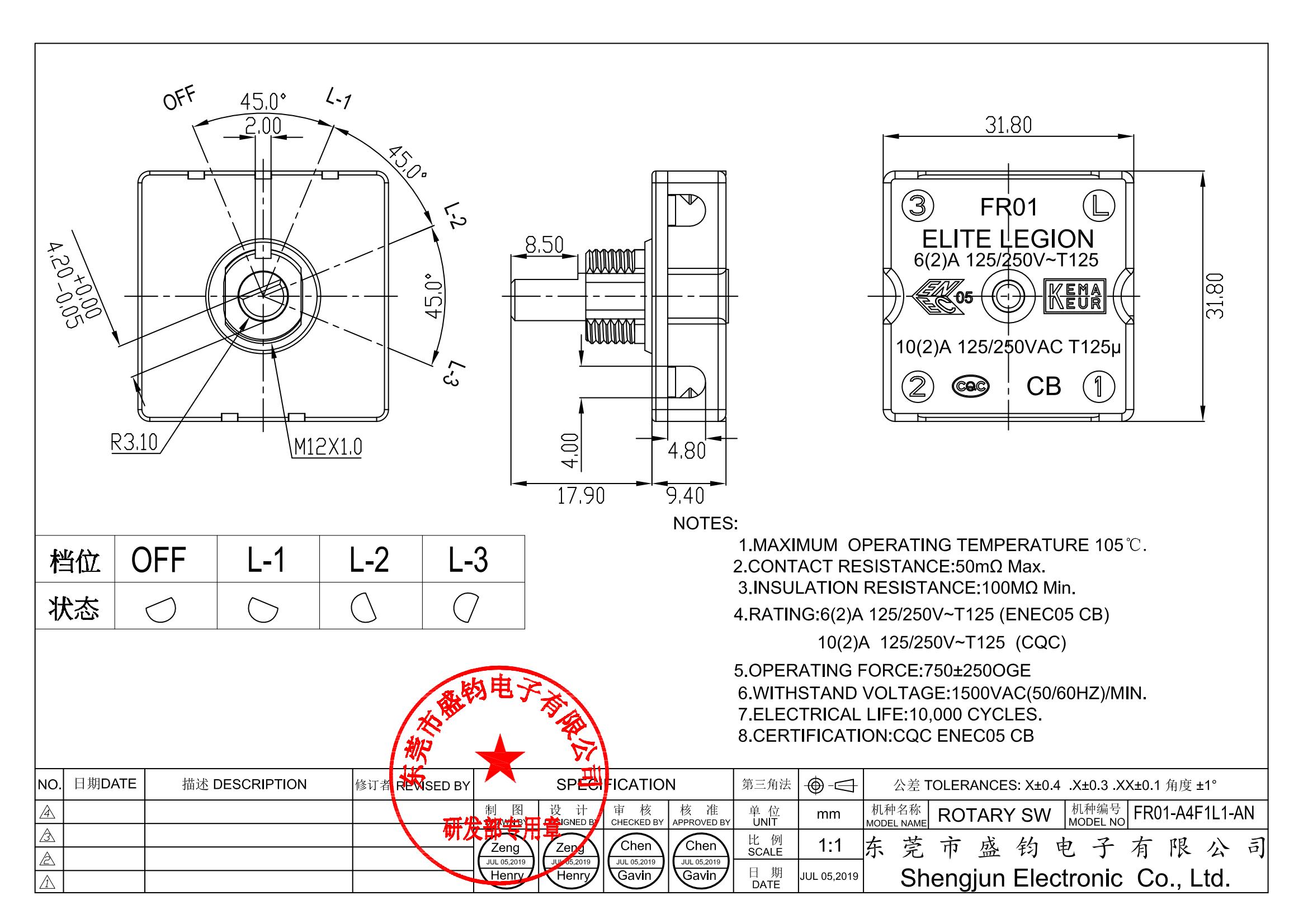

Features Technical Indicators Overall Dimension

①This model rotates 45° between each step. The positions are as follows:

Position 1: OFF

Position 2: L1 connection

Position 3: L2 connection

Position 4: L3 connection

②Rating：6A 125/250VAC

Certification - ENEC、CB、CQC

③Support customization.

(Additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).

ELECTRICAL PERFORMANCE

CONTACT RESISTANCE - 50mΩ Max

*MEASURED BY FALL-OF-POTENTIAL METHOD AT DC 0.2V/1A SHOULD BE LESS THAN 50mΩINITIAL.

INSULATION RESISTANCE - 100MΩ Min 500VDC

*MEASURED WITH DC 500V APPLIED BETWEEN TERMINALS OF OPEN CONTACTS AND BETWEEN TERMINAL OF OPPOSITE POLARITY OR METAL PART. SHOULD BE MORE THAN 100MΩ.

DIELECTRIC STRENGTH - 1500VAC/Min

*THE SWITCH SHALL WITHSTAND WITHOUT BREAKDOWN A POTENTIAL OF AC 1500V 0.5mA FOR MINUTE BETWEEN TERMINALS OF OPEN CONTACTS AND TERMINALS OF OPPOSITE POLARITY OR METAL PART.

ELECTRICAL LIFE - 10,000 CYCLES+
